Backend Architecture

  • Written in Python using the FastAPI framework.
  • Provides RESTful APIs for cheminformatics operations.
  • Hybrid toolkit integration:
    • Native Python toolkits: RDKit, Open Babel.
    • Java toolkits (e.g., CDK, SRU, OPSIN) accessed via JPype.
  • Docker containerization ensures reproducibility and consistent deployment.
  • Designed for scalability and future extensibility without disrupting current services.
  • Publicly available at https://api.naturalproducts.net/latest/docs.

Frontend Architecture

  • Built using React for strong community support and sustainability.
  • Component-based design with modular service layers and custom hooks.
  • Styled using Tailwind CSS for responsive UI.
  • Communicates with backend via RESTful API using Axios.
  • API interactions are abstracted through a dedicated service layer.
  • Structured into functionally specialized pages.
  • Publicly available at https://app.naturalproducts.net/.

Toolkit Integration Challenge

  • Toolkits use different languages:
    • RDKit/OpenBabel: C++/Python
    • CDK: Java
  • Integrating multiple toolkits is complex due to compatibility and environment setup.
  • Solution: use containerization and microservices for abstraction and flexibility.

Microservices & Containerization

  • Microservices: each function is a separate, scalable, maintainable unit.
  • Containers provide isolated, reproducible environments.
  • Docker is used for packaging and sharing toolkits.
  • CM (Cheminformatics Microservice) is publicly available via Docker Hub.

API Design

  • Uses REST API based on OpenAPI Specification 3.1.0.
  • Built with FastAPI for speed, efficiency, and automatic documentation.
  • Promotes interoperability, validation, and tool integration.

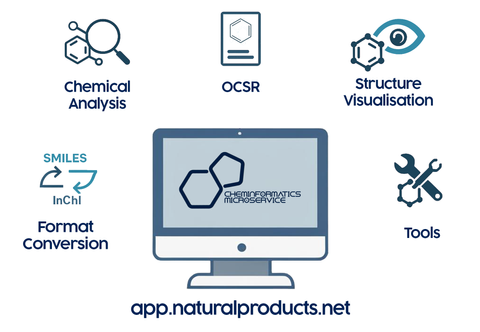

Functional Scope

  • Provides:
    • Format conversions
    • Optical Structure Recognition (OSR)
    • Chemical data standardization
    • Descriptor calculations
  • Integrated tools:
    • Cheminformatics: RDKit, CDK, OpenBabel
    • Deep learning: DECIMER, STOUT
  • Enables scalable, interoperable, and efficient cheminformatics applications.

Architectural Decisions

  • Combines FastAPI + Docker for seamless deployment.
  • Maintains flexibility via microservice architecture:
    • Individual services can be updated without affecting others.
  • Contrary to usual practice, all toolkits are packaged in one container:
    • Simplifies deployment and avoids complex orchestration.

Deployment & Monitoring

  • Dockerfile, docker-compose YAML, and deployment scripts are available on GitHub.
  • HELM charts provided for Kubernetes-based deployments.
  • Monitoring and visualization:
    • Prometheus for metrics collection and alerting.
    • Grafana for real-time dashboards and usage visualization.
